Flow direction: Unidirectional

Boundary condition: Open

Places of research: Footpaths at downtown Osaka City, Japan

Data collection:

  • To collect the basic data, time laps photographs of unidirectional flows of commuters were taken by the use of a bird´s eye view camera in the CBD of Osaka City.
  • The sidewalk sections observed in this study were ranged from 2.2 m to 4.5 m in width and 20 m in length.

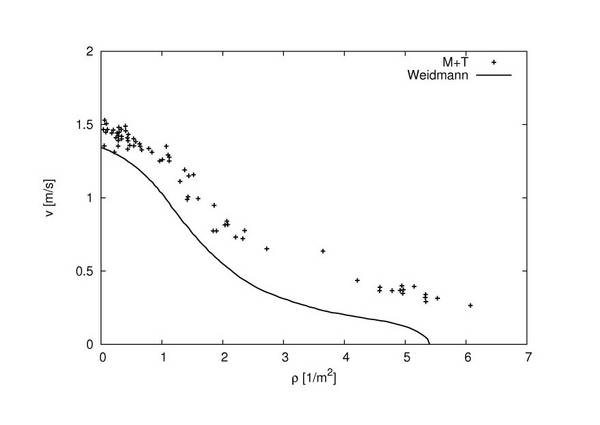

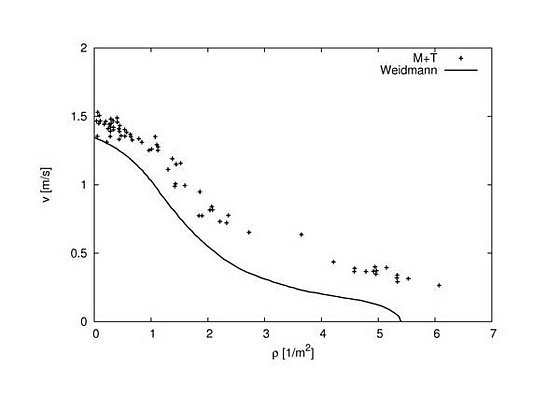

Fundamental Diagram


The data can be found here.


M. Mori and H. Tsukaguchi
A new Method for Evaluation of Level of Service in Pedestrian Facilities
Transp. Res.-A Vol. 21 A, No. 3, pp. 223-234, 1987
